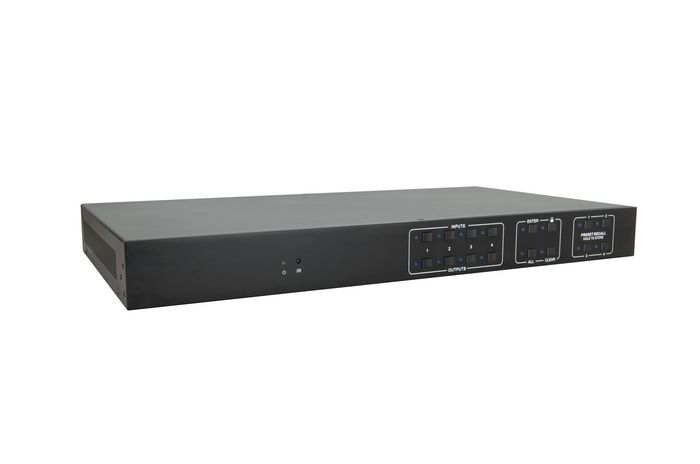

Vivolink HDMI 2.0 4x4, Matrix switcher w/GUI and RS232 control
Vivolink HDMI 2.0 4x4, Matrix switcher w/GUI and RS232 control
This is a special-order item and is therefore non-refundable.
MPN VLHDMIMAT4X4
EAN/UPC 5711783930174
Stock level
HDCP2.2, audio de-embedder HD Audio support, build-in GUI + LAN control
Typical installations:
Professional signal distribution with selectable in and outputs
Function:
4 HDMI inputs
4 HDMI outputs + Audio SPDIF (coax)
Control: IR + RS232 + TCP/IP
Smart EDID management, automatically adopt the resolution of the first detected display from port 1 or 2
Intuitive indicator for connection status & input HDCP compliance status
HDMI 2.0 matrix HDCP 2.2
Support 18Gbps bandwidth for 4K@60Hz 4:4:4 8bit
Deep color formats and HDR capability
HD Audio support up to DTS:X and Dolby Atmos
Build-in GUI for matrix set-up and control over LAN
Smart EDID management, automatically adopt the resolution of the first detected display from port 1 or 2
Intuitive indicator for connection status& input HDCP compliance status
Specifications for VLHDMIMAT4X4
Features
Audio formats supported
PCM
Audio output channels
2.0 channels
Bandwidth
18 Gbit/s
Consumer Electronics Control (CEC) support
Yes
Extended display identification data (EDID)
Yes
HD type
4K Ultra HD
HDCP
Yes
HDCP version
2.2
LED indicators
Y, Yes
Maximum frame rate
60 fps
Maximum resolution
3840 x 2160 Pixels
Plug and Play
Yes
Product colour
Black
Rack mounting
Yes
Remote control type
IR + RS232
Operational conditions
Operating temperature (T-T)
-5 - 55 °C
Package dimensions (verified)
Depth Verified
54 cm
Gross Weight Verified
3.1 kg
Height Verified
14 cm
Width Verified
35 cm
Packaging content
AC adapter included
Yes
Cables included
IR sensor
Mounting brackets included
Yes
Remote control included
Yes
Ports & interfaces
Audio (L/R) out
1
Digital audio coaxial out
1
HDMI in
4
HDMI ports quantity
8
HDMI version
2.0
Number of HDMI outputs
4
RJ-45 input ports
1
RS-232 ports
1
S/PDIF out port
Yes
Power
AC input voltage
100 - 240 V
Product dimensions
Net Weight (Product, kg)
0.5 kg
Product Depth
54 cm
Product Height
14 cm
Product Width
35 cm
Technical details
Audio support
Yes
Vendor information
Brand Name
Warranty
3 Year(s)
Description
HDMI 2.0 4x4, Matrix switcher w/GUI and RS232 control
HDCP2.2, audio de-embedder HD Audio support, build-in GUI + LAN control
Typical installations:
Professional signal distribution with selectable in and outputs
Function:
4 HDMI inputs
4 HDMI outputs + Audio SPDIF (coax)
Control: IR + RS232 + TCP/IP
Smart EDID management, automatically adopt the resolution of the first detected display from port 1 or 2
Intuitive indicator for connection status & input HDCP compliance status
