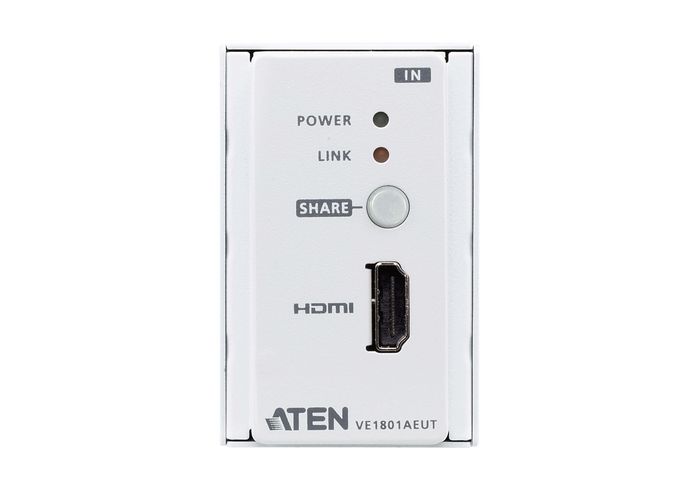

Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH
Aten HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH
The packaging of the product may be damaged
MPN VE1801AEUT-AT-G
Item no. W126500868-C1
EAN/UPC 4710469340567
Stock level
The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.
The VE1801AEUT can be easily mounted in a 1-gang junction...
Extends HDMI signals with superior video quality over a single Cat 5e/6/6a cable or ATEN 2L-2910 Cat 6 cable
Built-in PoH (Power over HDBaseT) function – the VE1801AEUT receives power supply from the HDBaseT output port
HDMI (3D, Deep color, 4K); HDCP 2.2 compliant
Designed to mount in a 1-gang junction box with EU wall plate
Supports RS-232 channel transmission
Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
HDBaseT Anti-jamming – resists signal interference during high-quality video transmission using HDBaseT technology
Share function – the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421
LED indication of device status
Supports wide screen format
Specifications for VE1801AEUT-AT-G
Features
3D
Yes
Bandwidth
10.2 Gbit/s
Bandwidth
340 MHz
Cable types supported
Cat5e, Cat6, Cat6a
Consumer Electronics Control (CEC) support
Yes
HDCP
Yes
HDCP version
2.2
Impedance
100 Ω
Material
Metal
Maximum refresh rate
60 Hz
Maximum resolution
4096 x 2160 Pixels
Maximum transfer distance
70 m
Product colour
White
Supported graphics resolutions
1920 x 1080 (HD 1080), 3840 x 2160, 4096 x 2160
Type
AV transmitter
Wall mountable
Yes
Logistics data
Master (outer) case gross weight
2.79 kg
Master (outer) case height
17.5 cm
Master (outer) case length
32.5 cm
Master (outer) case net weight
1.85 kg
Master (outer) case volume
14158.42 cm³
Master (outer) case width
25 cm
Products per master (outer) case
5 pc(s)
Operational conditions
Operating relative humidity (H-H)
0 - 80 %
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Package dimensions
Depth (package,cm)
32.5 cm
Gross Weight (Package, kg)
2.79 kg
Height (package,cm)
17.5 cm
Width (package,cm)
25 cm
Ports & interfaces
Connectivity technology
Wired
HDBaseT port
Yes
HDMI in
1
RJ-45 output ports
1
Serial interface type
RS-232
Power
Power consumption (max)
4 Watt
Power consumption (typical)
3.26 Watt
Product dimensions
Net Weight (Product, kg)
1.85 kg
Product Depth
23.9 cm
Product Height
16 cm
Product Width
5.9 cm
Technical details
Package volume
2265.35 cm³
Vendor information
Brand Name
Description
HDMI HDBaseT-Lite Transmitter with EU Wall Plate / PoH
The ATEN VE1801AEUT HDMI HDBaseT-Lite transmitter delivers 4K signals up to 40 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable, ensuring users to stabilize HDMI signal transmission with support of 3D, Deep color and embedded HD lossless audio formats. During high-quality video transmission, the transmitter can resist signal interference with the equipped HDBaseT Anti-jamming technology and offer a reliable signal extension.
The VE1801AEUT can be easily mounted in a 1-gang junction box with EU wall plate, concealing bulky cable setups and presenting needed information in sight. In addition, with built-in PoH (Power over HDBaseT) function, the VE1801AEUT receives power supply from a connected PoH PSE supported receiver and streamlines complex power line deployment.
Expanding on previous models by the share function, the VE1801AEUT can remotely switch source when connecting to a compatible receiver, e.g., VP1421, bringing users for more convenient AV extension. This compact transmitter provides a neat and simple installation on walls or tables, enabling users to elegantly immerse their AV applications into any environment. Therefore, the VE1801AEUT is ideal for use in meeting rooms, digital educational environments or any application requiring stable high-quality transmission and effortless installation.
